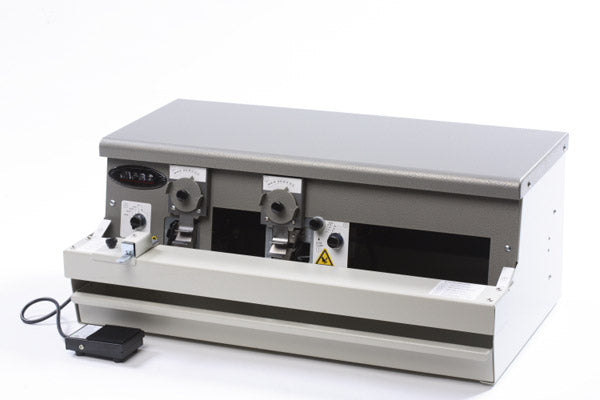

Dual Sided Crimping Unit for coil diameters from 6 mm to 50 mm
The TCB - Total Cut & Bend with its patented design can cut and crimp the full range of plastic spiral diameters from 6 mm up to 50 mm - with the same crimping heads!
(U.S. Patents # 7,731,468 & # 7,828,503)
FEATURES
No tools required for size changeovers.
Accommodates coil diameters from 6 mm to 50 mm without the need to change crimp heads.
Min/Max binding edge 5.5" - 17" (14 cm - 43 cm)
Easy to follow decals guide the operator through setup.
Removable off-cut tray makes accumulation and disposal of off-cuts neat and tidy.
Available with electric or pneumatic actuation.
Foot pedal operated.
BENEFITS

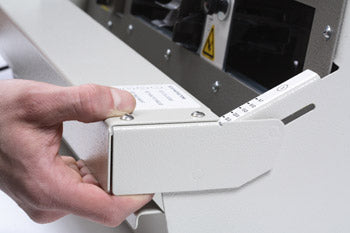

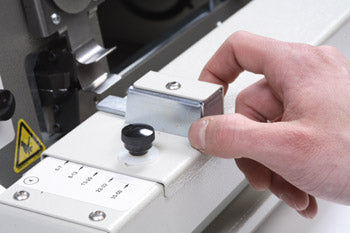

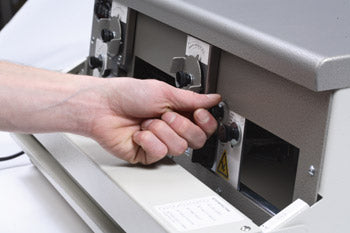

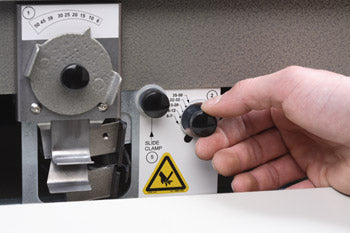

Simple dial adjustments enable you to setup, cut and crimp coil diameters from 6 mm to 50 mm with the same crimping heads!

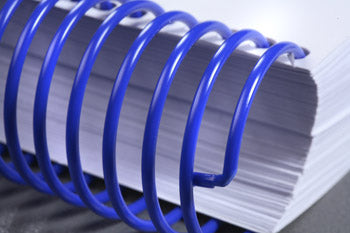

Longer crimp achieved as the coil diameter increases reducing the risk of coil unwinding from the larger punch holes.
Large top surface doubles as useable workspace.
Easily integrated with most coil insertion equipment.
SPECS
Electric version - 110 V or 220 V Single phase
Pneumatic version - Compressed air requirements: 80 psi @ 1 cfm
CE Compliant
Dimensions 28"W x 16"D x 12"H (71 cm x 41 cm x 30.5 cm)
